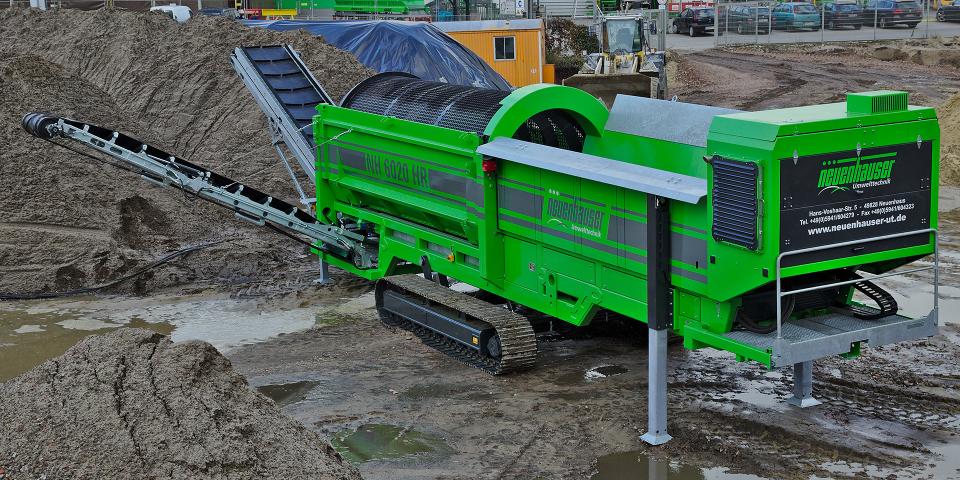

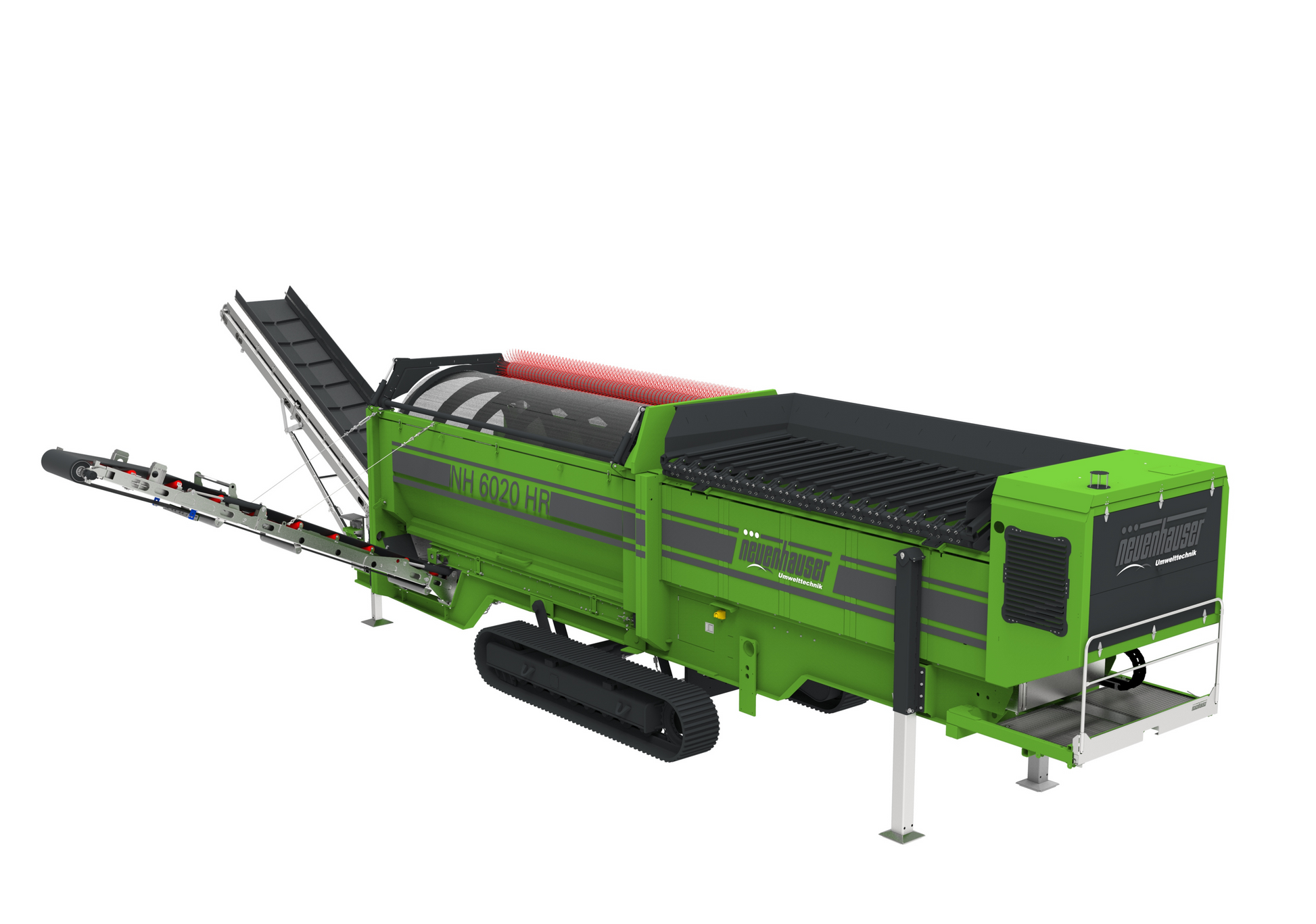

Neuenhauser NH6020H Track Trommel

Neuenhauser NH6020H Track Trommel

Description

The Neuenhauser NH6020H trommel features a European spiral style drum which is interchangeable with most other manufactures.  The ripped belt drive avoid belt slippage on the large 15yd3 hopper.  With a water cooled engine and turbo loaded with air to air load cooling this trommel can work in even the harshest conditions.

NH6020 Trommel is designed and built specifically for the organics and recycling industries.

Features

  • Direct Drive
  • European spiral style drum
  • Max feed size 6”
  • High capacity 350yd3/hr (depending on material*)
  • Hydraulic folding discharge conveyor
  • Drum interchangeable with other manufacturers
  • Full access doors for drum removal
  • Diesel hydraulic drive
  • Reversible radiator fan
  • Electronic engine control and monitory LCD display
  • Extra wide fines collection conveyor
  • Ripped belt drive on feed hopper
  • 15yd3 hopper capacity
  • Optional Starscreen insert

Specifications

Weight 53,000lbs
Transport length 43’
Transport width 9’ 8”
Transport height 12’ 1”
Working length 55’
Working width 20’
Working height 13’ 1”
Drum Size 18’ x 6’ 7”
